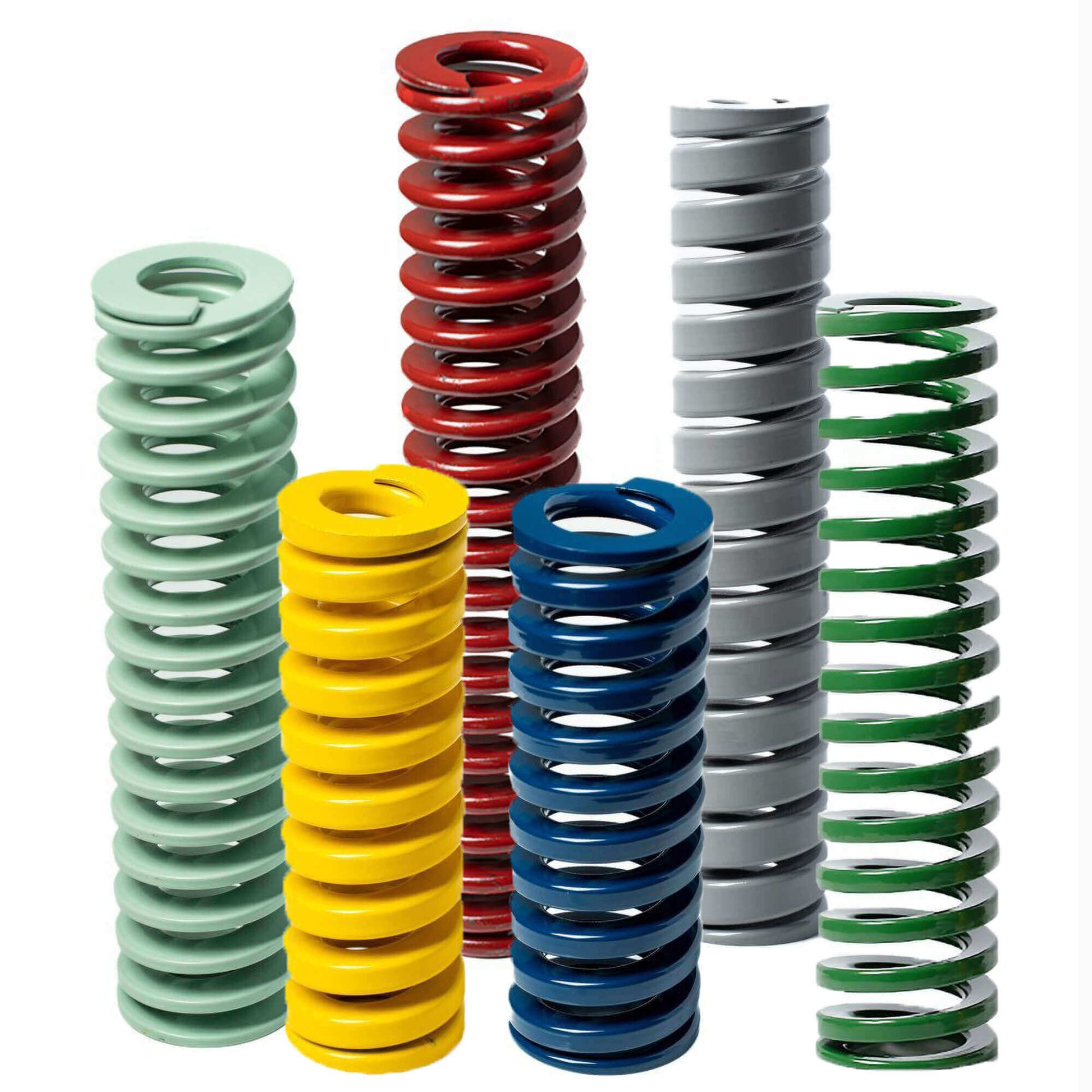

A heavy-duty rectangular-wire compression spring. Color-coded by load class. Built for high-cycle press work.
Die springs are compression springs wound from rectangular (instead of round) wire, giving them more cross-sectional area and higher load capacity in the same envelope. Industry-standard color codes — light, medium, heavy, extra-heavy, die-button — indicate load class.
Built for the punishment of stamping and forming presses where springs cycle millions of times.
Specifications
| Wire (rectangular) | various die-spring standard sizes |
| Outer diameter | 8mm – 63mm |
| Free length | 25mm – 300mm |
| Load classes | Light (yellow), Medium (blue), Heavy (red), Extra-Heavy (green), Die-Button (brown) |
| Material | Chrome silicon, chrome vanadium (die-spring grade) |
| Lead time | Stock items 2–5 days · production runs 1–2 weeks |
| MOQ | None — single piece available |
Common applications
- Stamping and progressive die presses
- Plastic injection mold ejector systems
- High-cycle clamping mechanisms
- Heavy-duty valve assemblies
Materials & finishes
Materials & finishes
Stainless spring steel and high-carbon spring steel for most spring types. Chrome silicon and chrome vanadium for die-spring grades. Polyurethane elastomer for urethane springs. Finishes available: zinc plating, black oxide, phosphate, passivated stainless.
Dimensions & tolerances
Dimensions & tolerances
Wire diameter range: 0.1mm – 10mm. Tolerance: ±0.05mm wire, ±1% free length, ±10% load. Squareness: 3° or less. Custom geometries to drawing — send a sample or a sketch.
Lead time & ordering
Lead time & ordering
Walk-in single-piece custom: often within an hour at our Valenzuela factory for standard geometries. Stock items: 2–5 days. Production runs: 1–3 weeks. No minimum order — single piece available.
QC & documentation
QC & documentation
Every batch is sample-tested before pack-out. Mill certificates, dimensional reports, and full material traceability available on request — at no extra charge for production runs above 500 pieces.
-
