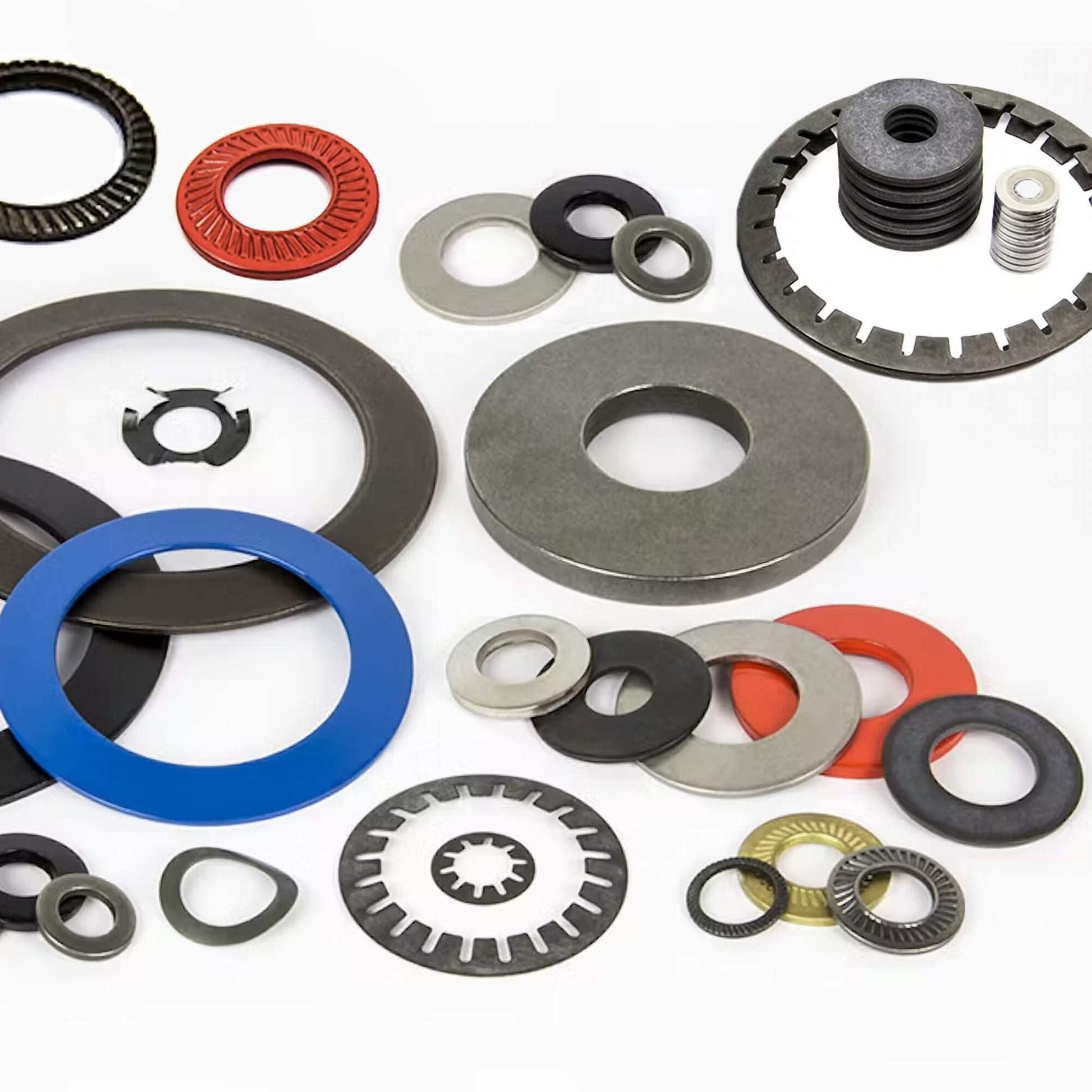

Disc Spring

Disc Spring

A washer-shaped spring (also called Belleville washer). Stacks for high force in a small space.

Disc springs are conical washers that flatten under load. Stacked in series or parallel, they deliver enormous force in a tiny axial space — far more than any helical spring of the same size could provide. Used in bolt preload, clutch packs, and any application that needs concentrated force in a slim profile.

We supply standard disc springs and stack assemblies.

Specifications

Outer diameter 6mm – 200mm
Inner diameter 3mm – 100mm
Thickness 0.2mm – 14mm
Material Chrome vanadium (die-spring grade), stainless
Stack assembly series, parallel, or mixed — specified per application
Lead time Stock items 2–5 days · production runs 2–3 weeks
MOQ None — single piece available

Common applications

  • Bolt preload and gasket compression
  • Clutch packs in transmissions
  • Vibration damping
  • Safety valves
  • Tooling preload

Get a quote for this disc spring →

Get a quote for this disc spring → or call +63 917 144 9976

Materials & finishes

Stainless spring steel and high-carbon spring steel for most spring types. Chrome silicon and chrome vanadium for die-spring grades. Polyurethane elastomer for urethane springs. Finishes available: zinc plating, black oxide, phosphate, passivated stainless.

Dimensions & tolerances

Wire diameter range: 0.1mm – 10mm. Tolerance: ±0.05mm wire, ±1% free length, ±10% load. Squareness: 3° or less. Custom geometries to drawing — send a sample or a sketch.

Lead time & ordering

Walk-in single-piece custom: often within an hour at our Valenzuela factory for standard geometries. Stock items: 2–5 days. Production runs: 1–3 weeks. No minimum order — single piece available.

QC & documentation

Every batch is sample-tested before pack-out. Mill certificates, dimensional reports, and full material traceability available on request — at no extra charge for production runs above 500 pieces.

View full details

  • Have a sample?

    Bring it to our factory in Valenzuela. Walk-ins welcome Mon–Sat 08:30–16:00 — we'll quote on the spot for standard work.

    Get directions

  • 2–5 days standard

    Most stock springs ship in 2–5 days. Custom runs in 1–3 weeks. Same-day pickup at our Valenzuela factory available.

  • Material certs included

    Mill certificates, dimensional reports, and material traceability documentation provided at no charge for production runs above 500 pieces.
