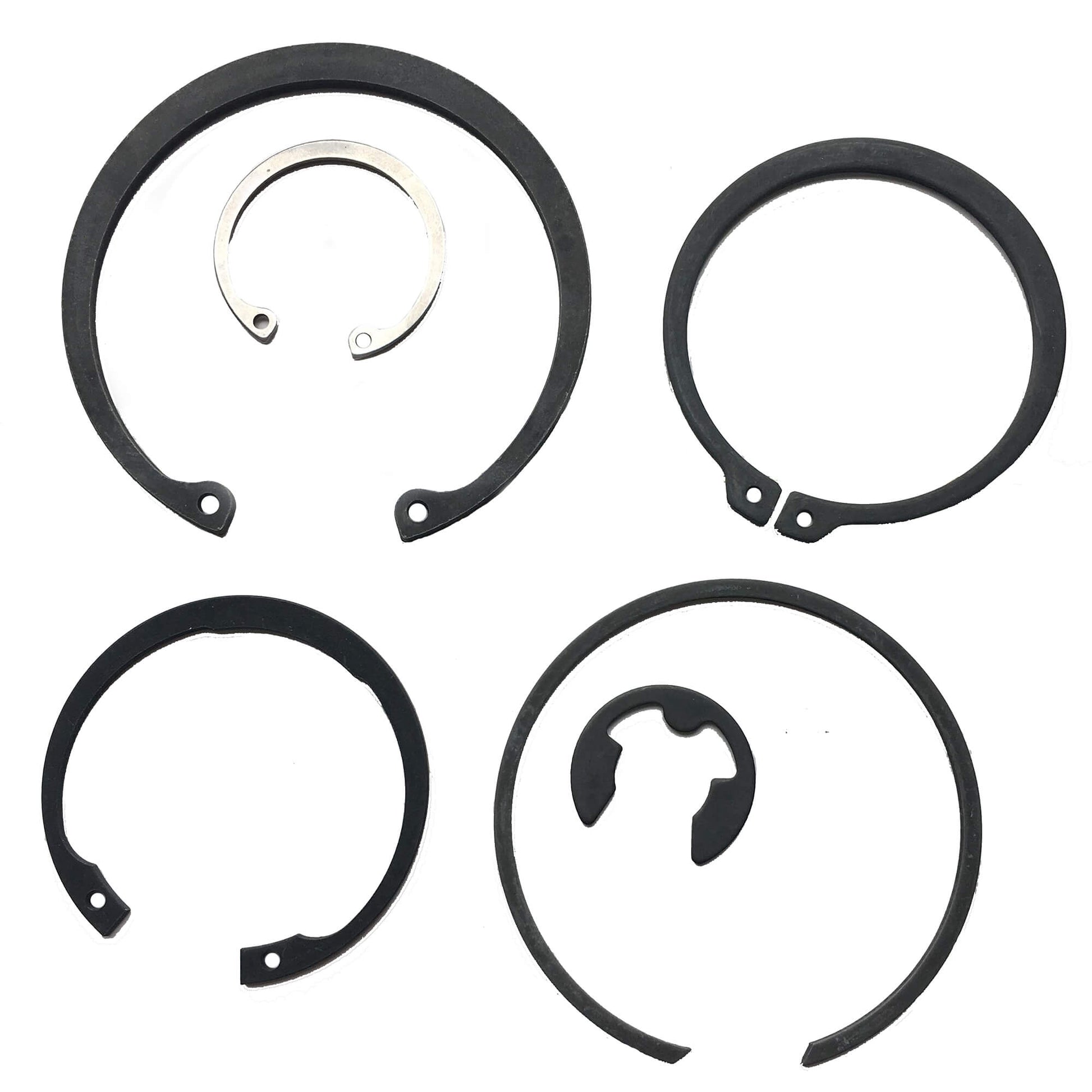

Retaining Ring

Retaining Ring

A formed wire or stamped ring that snaps into a groove, locking parts onto a shaft or into a bore.

Retaining rings (also called snap rings or circlips) hold parts in place axially without bolts or fasteners. They sit in a machined groove on a shaft (external) or inside a bore (internal) and resist axial loads up to thousands of pounds.

We supply DIN 471 (external) and DIN 472 (internal) retaining rings in standard sizes, and custom geometries to drawing.

Specifications

Standard sizes DIN 471 / DIN 472, M5 – M100
Material High-carbon spring steel, stainless
Finish Plain, phosphate, zinc, passivated
Custom rings wire-formed or stamped to drawing
Lead time Stock items 2–5 days · production runs 1–2 weeks
MOQ None — single piece available

Common applications

  • Bearing retention on shafts
  • Pulley and gear axial location
  • Hydraulic cylinder piston retention
  • Automotive driveline assemblies

Get a quote for this retaining ring →

Get a quote for this retaining ring → or call +63 917 144 9976

Materials & finishes

Stainless spring steel and high-carbon spring steel for most spring types. Chrome silicon and chrome vanadium for die-spring grades. Polyurethane elastomer for urethane springs. Finishes available: zinc plating, black oxide, phosphate, passivated stainless.

Dimensions & tolerances

Wire diameter range: 0.1mm – 10mm. Tolerance: ±0.05mm wire, ±1% free length, ±10% load. Squareness: 3° or less. Custom geometries to drawing — send a sample or a sketch.

Lead time & ordering

Walk-in single-piece custom: often within an hour at our Valenzuela factory for standard geometries. Stock items: 2–5 days. Production runs: 1–3 weeks. No minimum order — single piece available.

QC & documentation

Every batch is sample-tested before pack-out. Mill certificates, dimensional reports, and full material traceability available on request — at no extra charge for production runs above 500 pieces.

View full details

  • Have a sample?

    Bring it to our factory in Valenzuela. Walk-ins welcome Mon–Sat 08:30–16:00 — we'll quote on the spot for standard work.

    Get directions

  • 2–5 days standard

    Most stock springs ship in 2–5 days. Custom runs in 1–3 weeks. Same-day pickup at our Valenzuela factory available.

  • Material certs included

    Mill certificates, dimensional reports, and material traceability documentation provided at no charge for production runs above 500 pieces.
