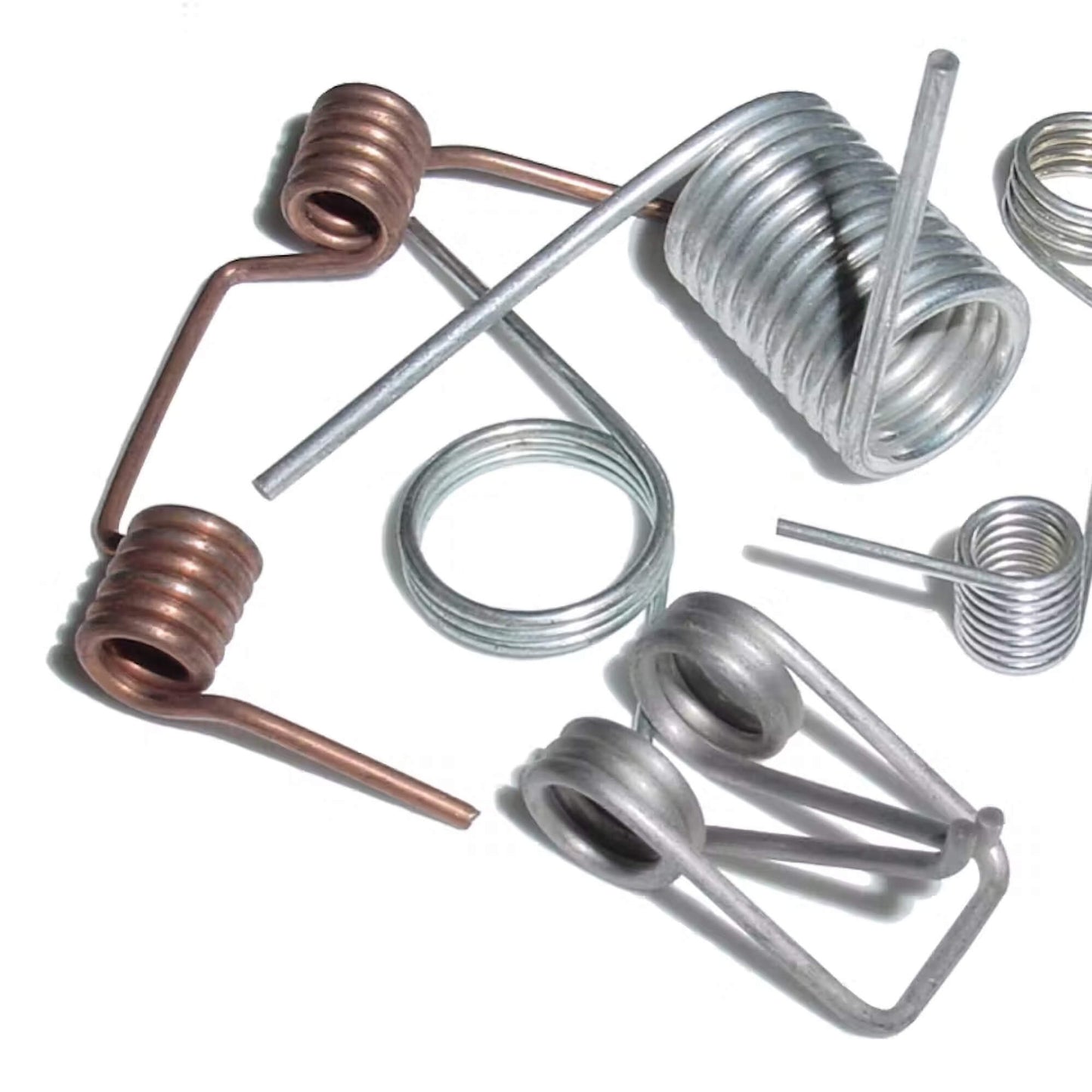

Torsion Spring

Torsion Spring

A coil that twists, not stretches. Stores rotational energy and exerts torque around its axis.

Torsion springs apply rotational force when twisted. The legs at each end of the coil rotate against each other, storing energy that returns when released. Mousetraps, clothespins, garage doors — torsion is everywhere a mechanism needs to spring back to position.

We coil single-body and double-body torsion springs in left- and right-hand winds, with leg geometries from 90° to 360° turn angles.

Specifications

Wire diameter 0.2mm – 8mm
Body diameter 2mm – 80mm
Wind direction Left-hand, right-hand, or paired
Leg angles 0° – 360°
Materials Stainless spring steel, high-carbon spring steel
Tolerance ±0.05mm wire, ±2° leg angle
Lead time 2–5 days for stock items · production runs 1–3 weeks · walk-in single-piece custom often within an hour
MOQ None — single piece available

Common applications

  • Garage door counterbalance shafts
  • Hinge return mechanisms
  • Mousetraps and clothespins
  • Switchgear and breaker mechanisms
  • Hood and trunk lid supports

Get a quote for this torsion spring →

Get a quote for this torsion spring → or call +63 917 144 9976

Materials & finishes

Stainless spring steel and high-carbon spring steel for most spring types. Chrome silicon and chrome vanadium for die-spring grades. Polyurethane elastomer for urethane springs. Finishes available: zinc plating, black oxide, phosphate, passivated stainless.

Dimensions & tolerances

Wire diameter range: 0.1mm – 10mm. Tolerance: ±0.05mm wire, ±1% free length, ±10% load. Squareness: 3° or less. Custom geometries to drawing — send a sample or a sketch.

Lead time & ordering

Walk-in single-piece custom: often within an hour at our Valenzuela factory for standard geometries. Stock items: 2–5 days. Production runs: 1–3 weeks. No minimum order — single piece available.

QC & documentation

Every batch is sample-tested before pack-out. Mill certificates, dimensional reports, and full material traceability available on request — at no extra charge for production runs above 500 pieces.
